Self-Adjusting Ferrule Crimping Tool Set
Self-Adjusting Ferrule Crimping Tool Set – Ratchet Crimper with 1,200 Color-Coded Wire-End Sleeves (AWG 23–10)

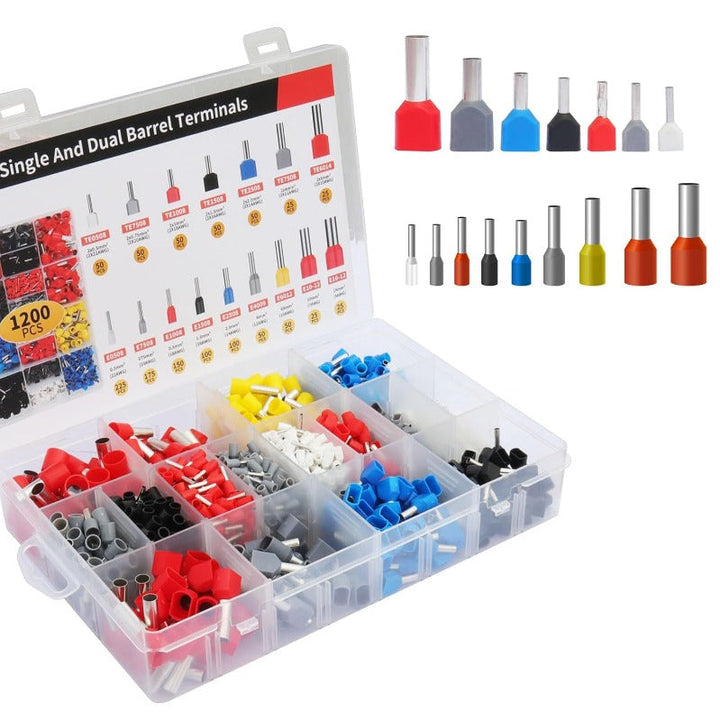

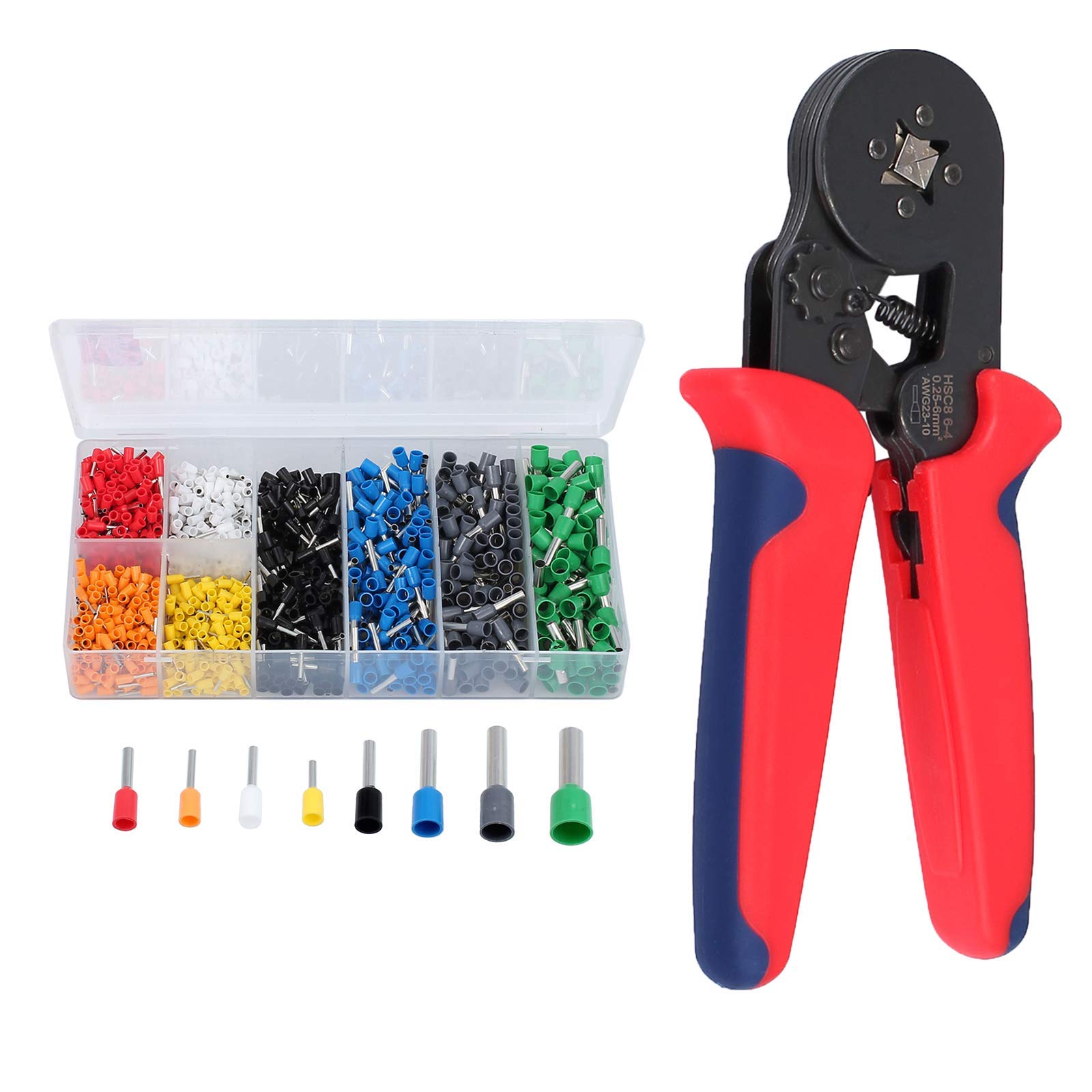

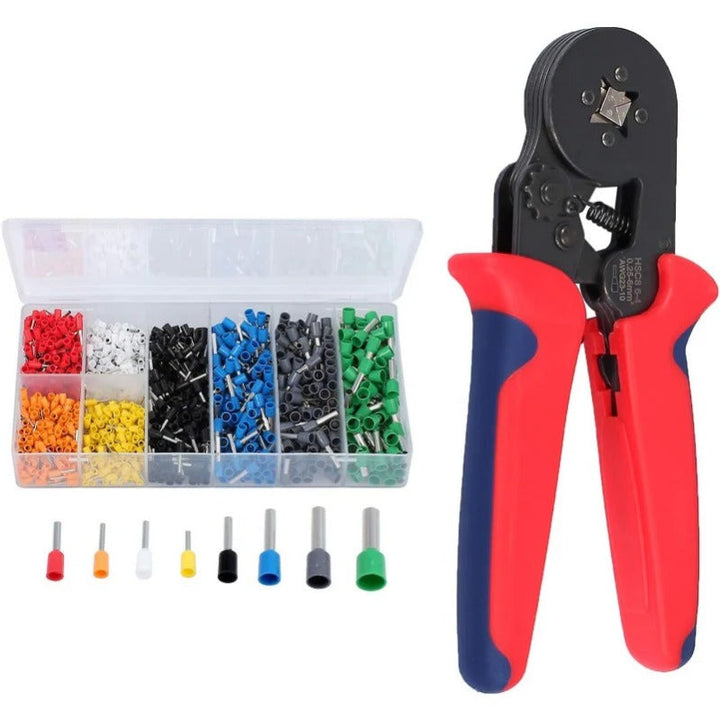

1. All-in-One Crimping Kit with 1,200 Ferrules
Includes a high-precision square crimper and 1,200 tinned-copper wire-end sleeves in 8 standard IEC color codes—ideal for electrical projects at home, in vehicles, or control cabinets.
2. Ergonomic Handle with Ratcheting Assist
Compound ratchet multiplies grip strength while textured dual-material handles provide superior comfort and control—great for long jobs or tight spaces.

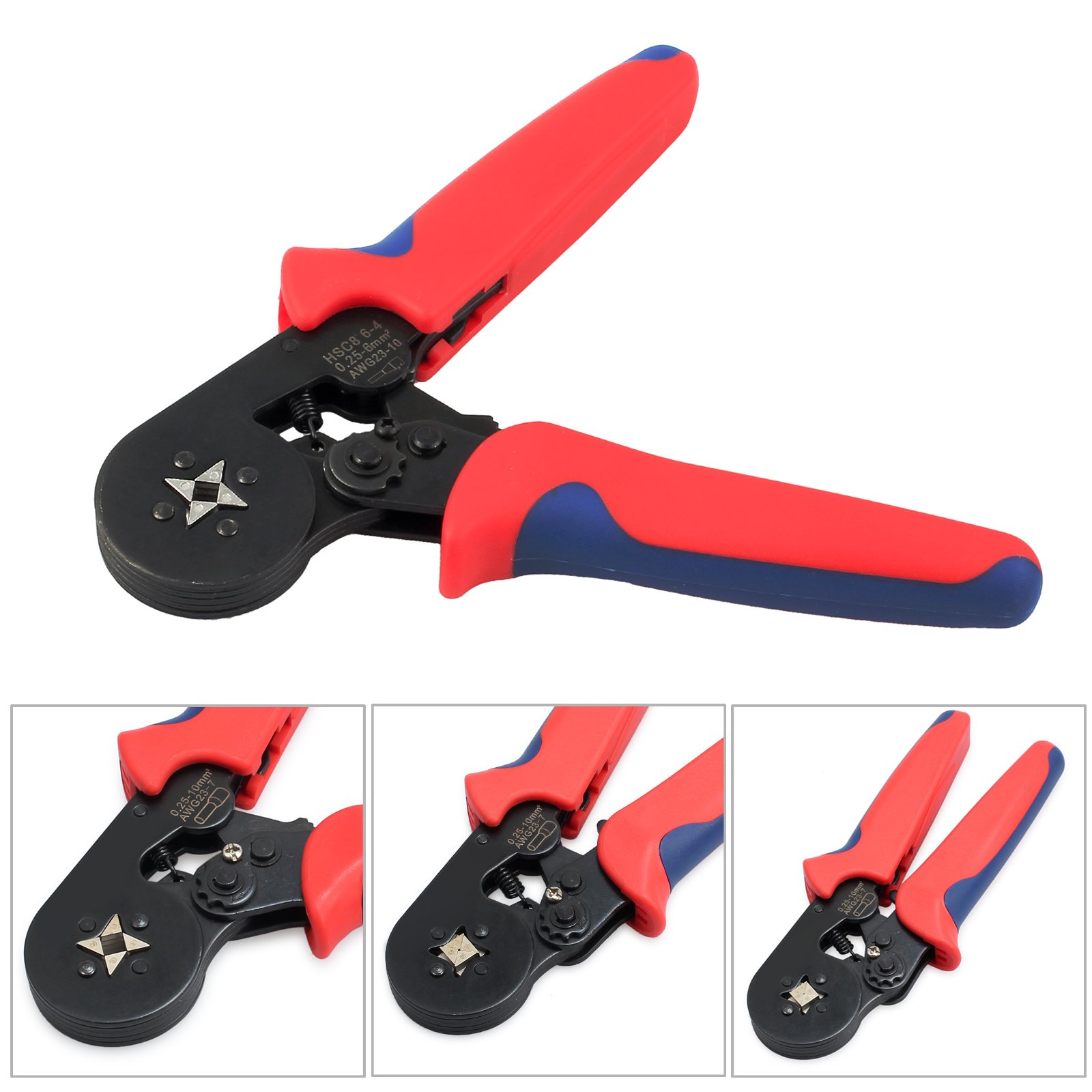

3. Four-Sided Square Crimping Jaws
Precision-ground mandrels compress evenly from all directions, forming clean, gas-tight connections with no loose strands—perfect for push-in terminals and PLC setups.
4. Auto-Adjusts to Wire from 0.25–6 mm²

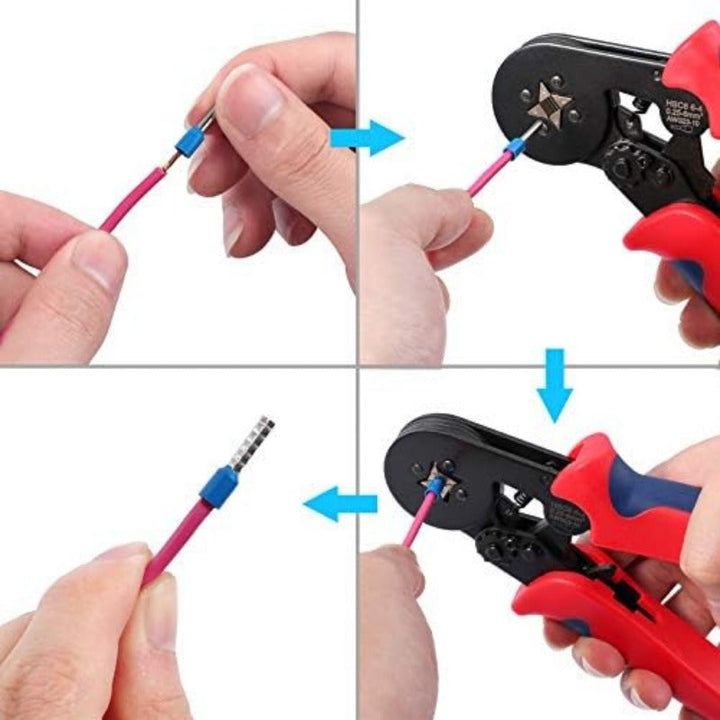

No dials or die swaps needed. Just insert a ferrule and the tool auto-centers on AWG 23–10 sleeves—easy, accurate, and foolproof.

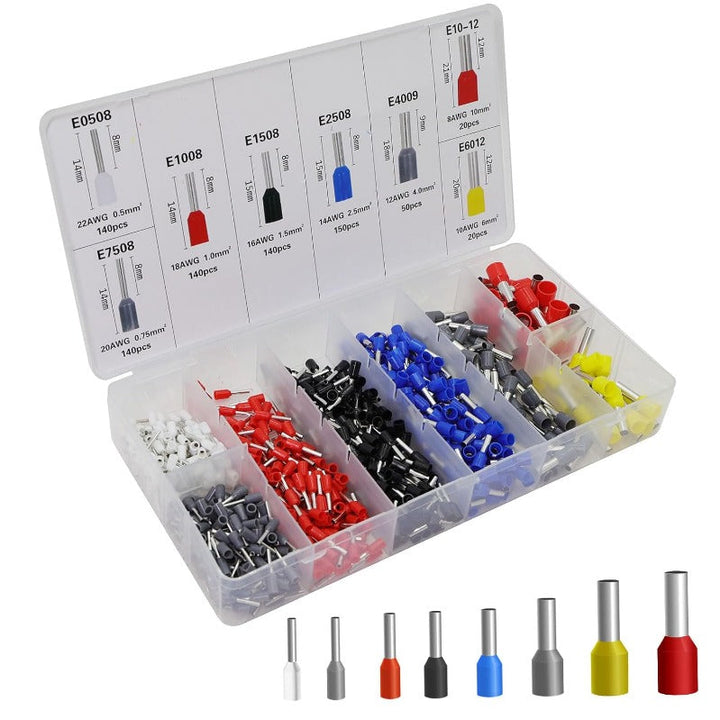

5. Quick-Identify Color-Coded Ferrules
Each sleeve features an industry-standard collar color for fast gauge matching—no more sorting or second-guessing in the field.
🛠 Technical Specs
| Crimp capacity | 0.25–6 mm² │ AWG 23–10 |
| Crimp shape | Four-point square |
| Tool length | 175 mm / 6.9 in |
| Tool weight | ≈ 380 g / 13 oz |
| Handle construction | PA + TPR dual-injection |
| Ferrule assortment | 1,200 pcs (tinned copper with PVC collars) |

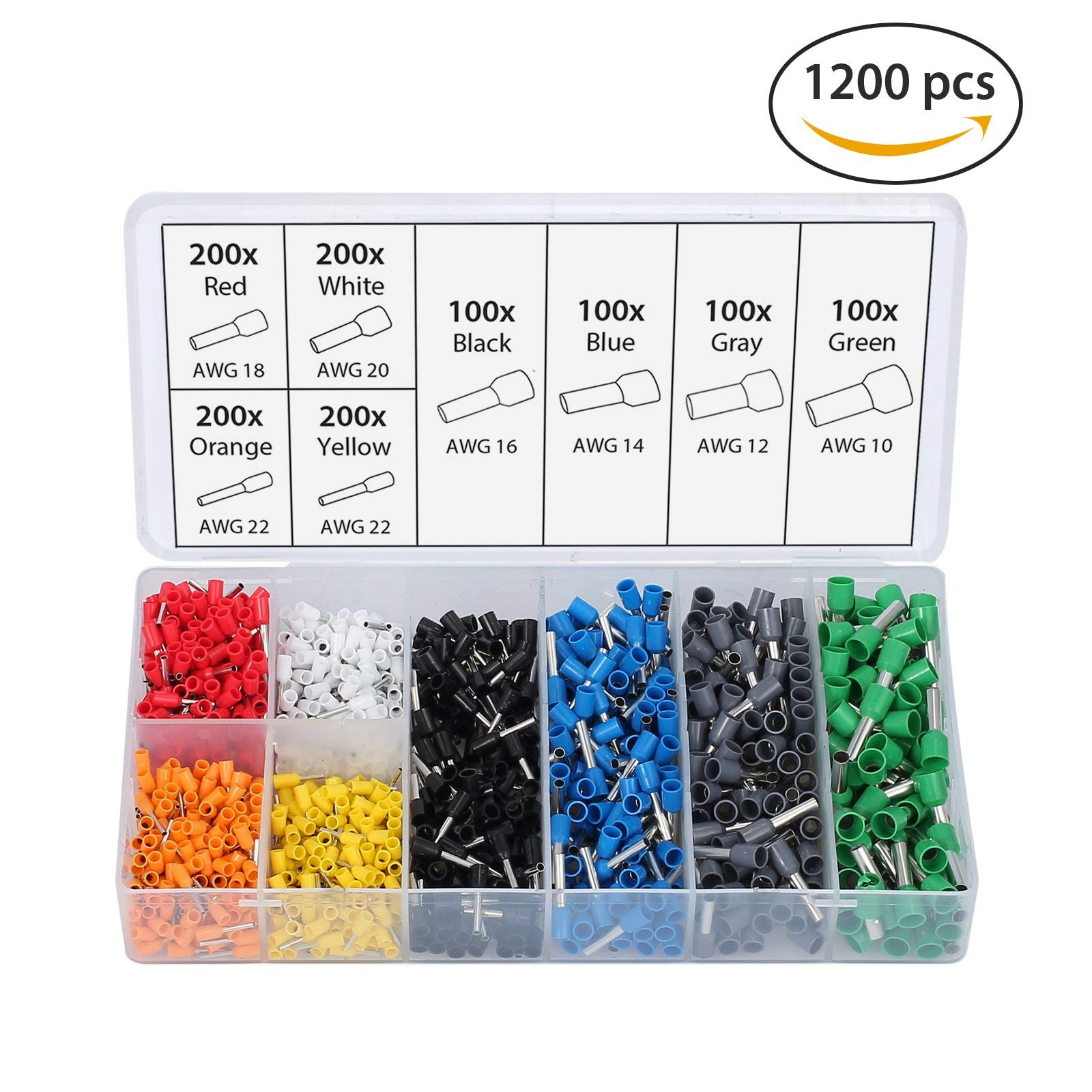

| Ferrule breakdown | 200× AWG 22 (orange) · 200× AWG 20 (yellow) · 200× AWG 18 (red) · 200× AWG 20 (white) · 100× AWG 16 (black) · 100× AWG 14 (blue) · 100× AWG 12 (gray) · 100× AWG 10 (green) |
| Storage case size | 22 × 10 × 3.5 cm |
| Maintenance tip | Lubricate pivot monthly; store in a dry place |
| Safety precautions | Ensure power is off before use; wear protective glasses |
💬 FAQ
Q • Will this crimp plain uninsulated sleeves?A • Yes—it delivers a square crimp on bare tinned ferrules just as well.
Q • How do I adjust the ratchet tension?
A • Use the micro-adjust screw near the hinge. Factory settings are precise, but you can fine-tune if needed.
Q • Can it crimp twin-wire ferrules?
A • This model is for single-conductor sleeves. For twin ferrules, consider a dual-entry crimper.
Q • Are the ferrules RoHS-compliant?
A • Yes—all components meet RoHS and REACH standards; collars are halogen-free PVC.
Q • What if I need more of a specific size?
A • Contact our team with your order number—we’ll send out refill packs within 48 hours.
