Single Tap — Lifetime Grip

Hammer-Drive Rivets Deliver Tool-Free, Rock-Solid Joints

Ditch oversized riveting tools; with these hammer-drive expansion rivets one swift swing locks metal, wood or plastic panels together—neat, level and built to last.

Key Advantages

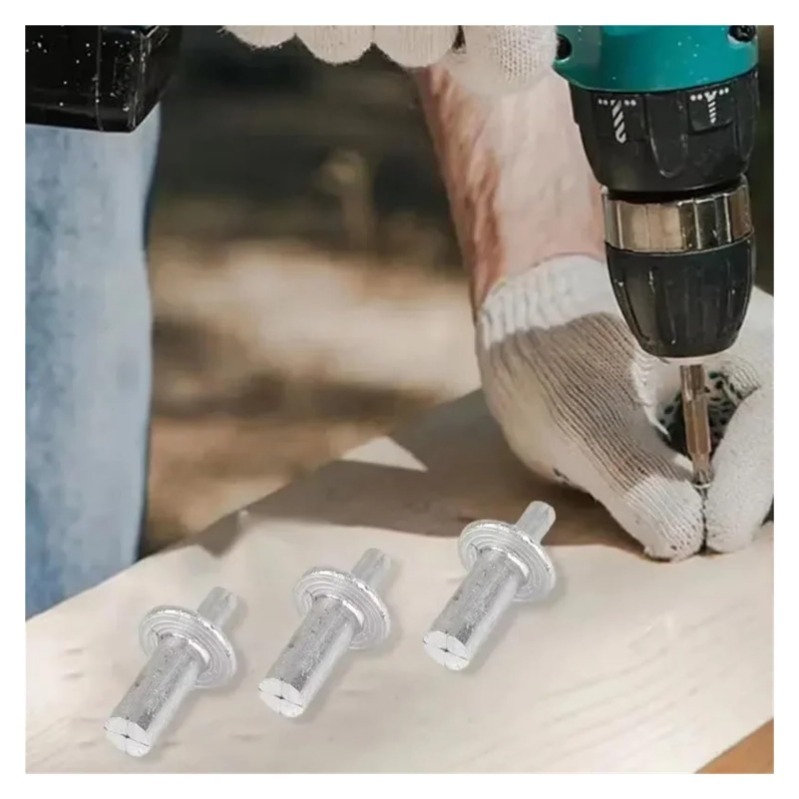

• No Special Tool Needed — Simply drill the hole, then strike the pin.

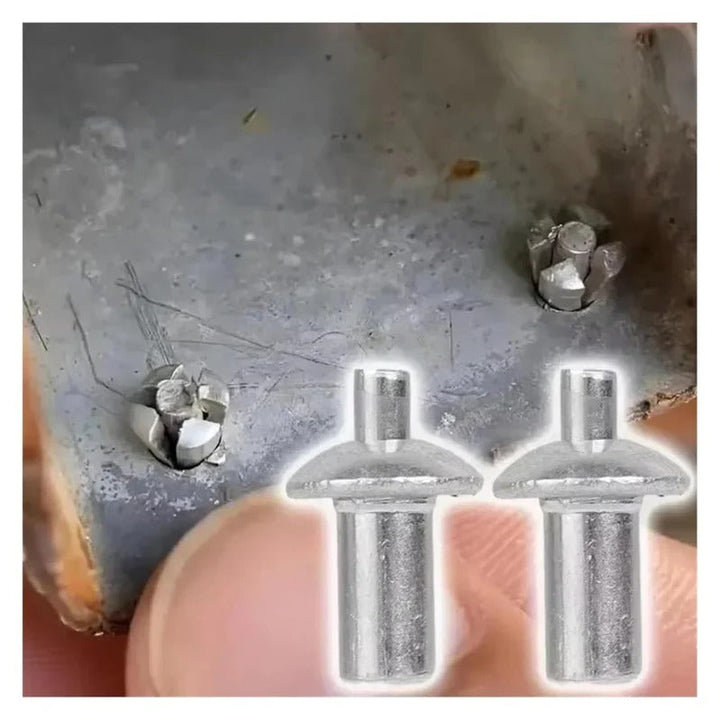

• 360° Split-Shank Expansion wedges firmly against the bore wall, defeating vibration and pull-out.
• Corrosion-Proof Build — Choose marine-grade aluminium alloy or 304 stainless steel.

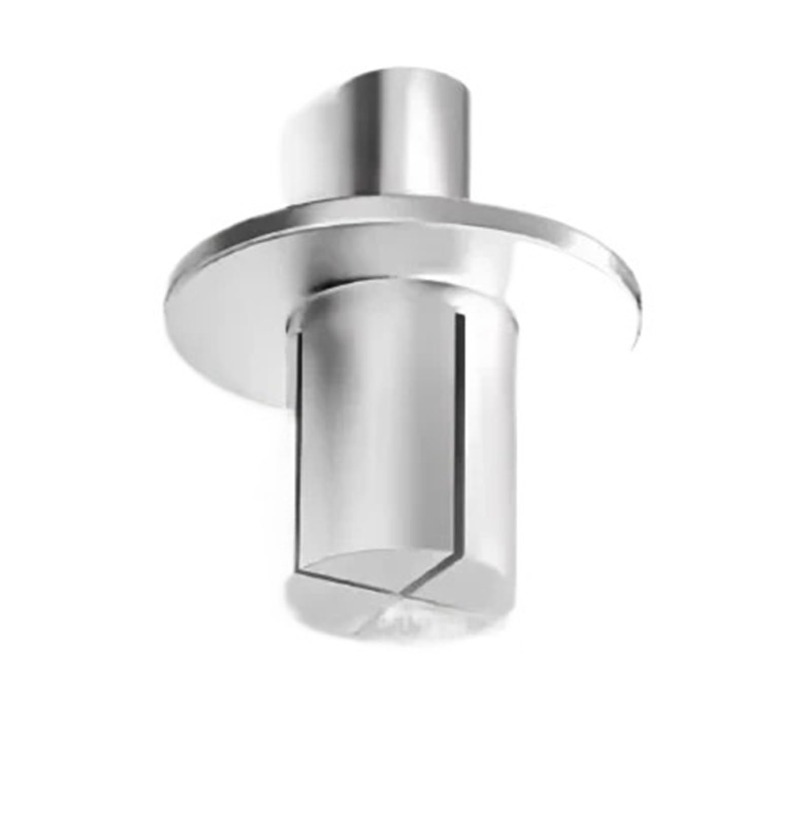

• Sleek Mushroom Head leaves a tidy, low-profile surface.
• Multi-Purpose — Perfect for auto projects, machinery, cabinetry, outdoor fixtures and beyond.

Picture This

Restoring a vintage motorbike, you need fasteners that shrug off engine shake. One quick hammer tap flares the split shank like metal petals, clamping so securely it feels welded—job done in under five seconds.

Tech Specs

• Head Style: Mushroom with countersunk edge
• Materials: 6063-T6 Aluminium Alloy / 304 Stainless Steel
• Diameters (D): Ø4 mm (5/32 "), Ø5 mm (3/16 "), Ø6 mm (1/4 ")
• Drill Size: D + 0.1 mm for optimal bite
• Typical Length: 20 mm (0.79 "), grip range 1-12 mm (0.04-0.47 ")
• Shear Strength: up to 1,800 N (Ø6 mm stainless)

FAQ

Q: What drill bit should I use?
A: Select a bit 0.1 mm wider than the rivet’s nominal size (e.g., 5 mm rivet → 5.1 mm drill).

Q: Can the rivet be removed later?
A: Yes. Drill through the head to release the shank, then punch out the remainder.

Q: Are aluminium versions suitable for outdoor use?
A: Definitely. The anodised coating resists rust, while stainless steel is best for harsh salt-spray zones.
