CBB61 Capacitor – High-Performance Motor Start Capacitor for Fans & Appliances

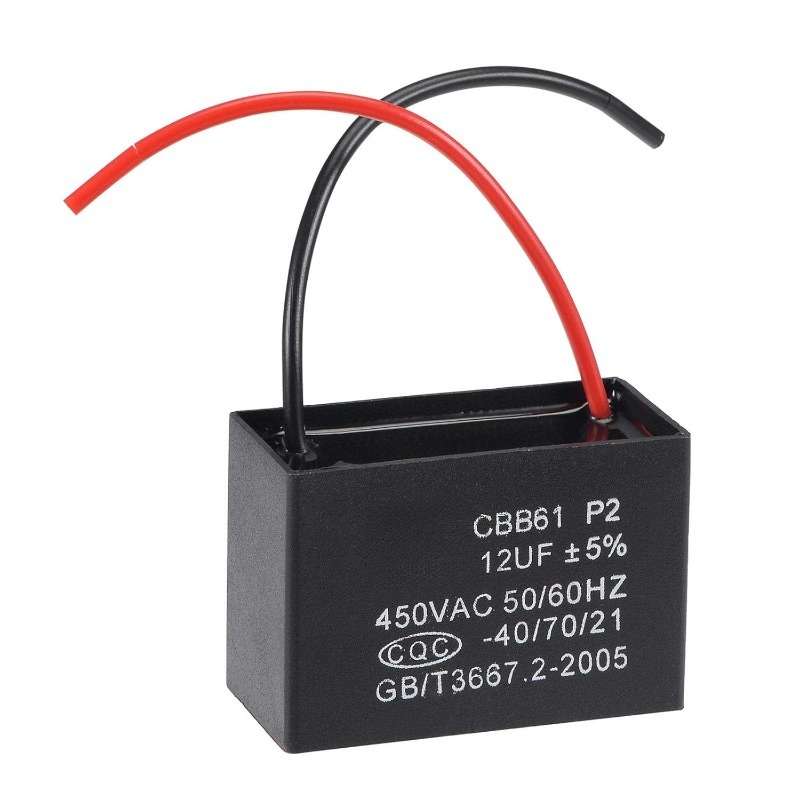

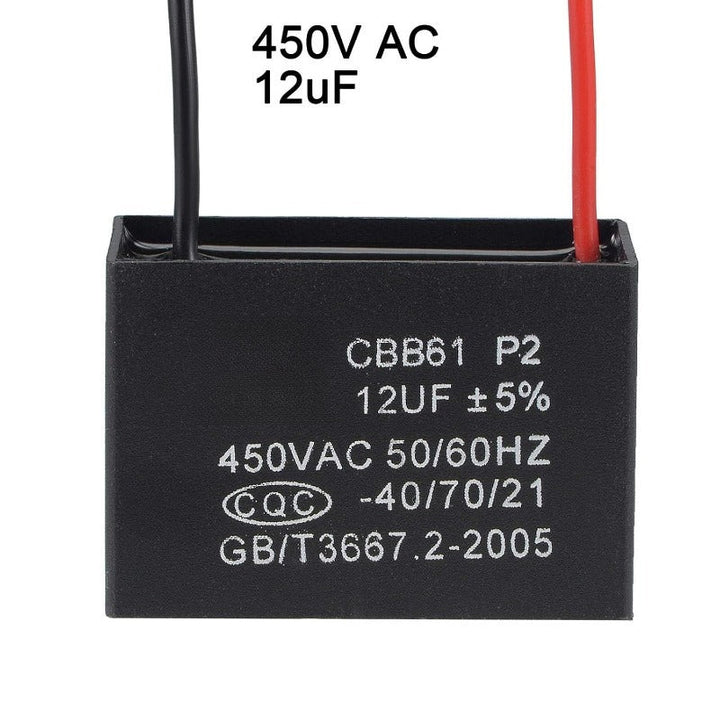

450V AC 12uF CBB61 Capacitor
Stable & Durable Performance
This capacitor features ±5% tolerance and 450V AC rating, providing stable operation with shock resistance and high-temperature endurance—ideal for long-term use.
Compact Size, Easy to Install

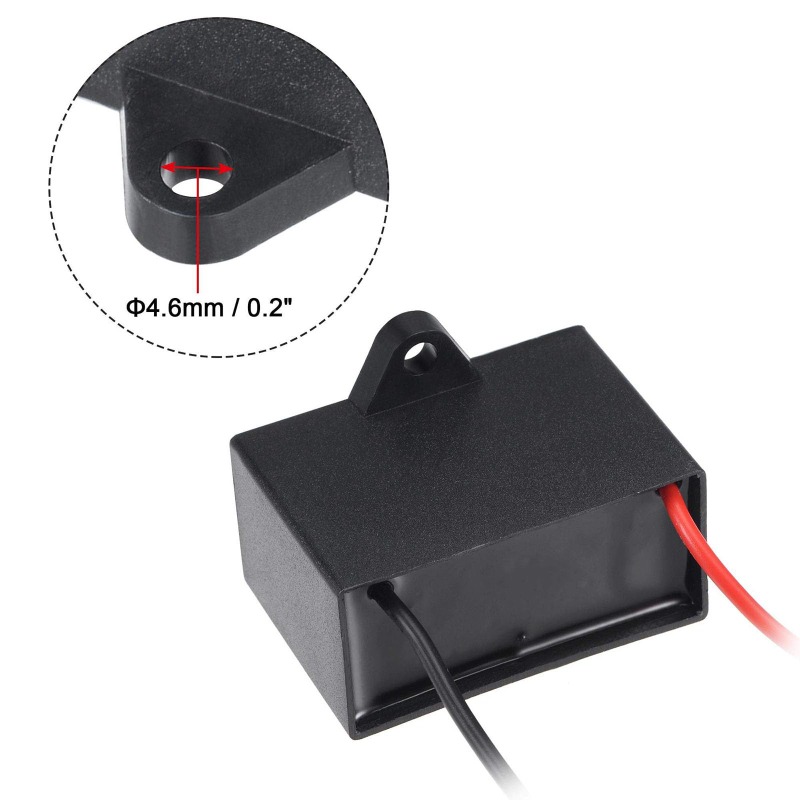

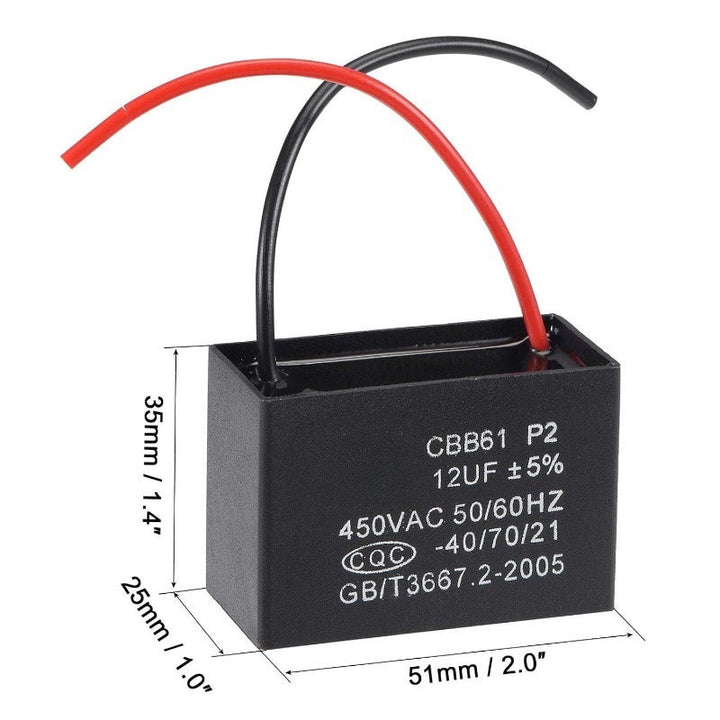

With a 51mm × 35mm × 25mm body and 95mm wire length, this CBB61 capacitor fits snugly into compact electrical spaces. Includes Φ4.6mm mounting hole for secure fixing.
Versatile Application Range

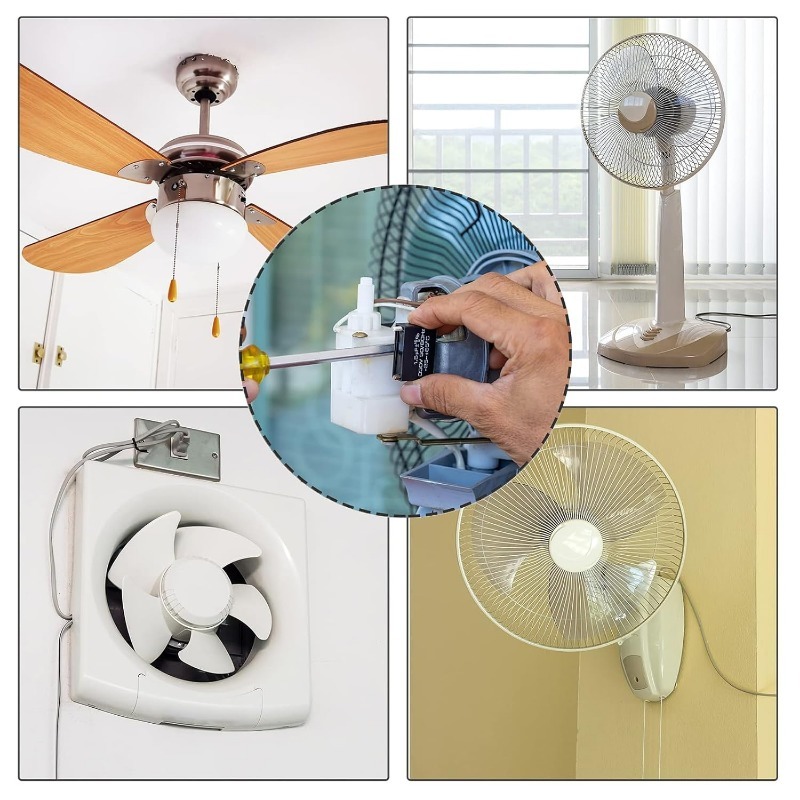

Commonly used for ceiling fans, wall fans, air pumps, motors, exhaust fans, and generators. Suitable for AC single-phase 50/60Hz circuits.
Polypropylene Film + Plastic Shell
Constructed with metallized polypropylene film and protective plastic casing. Ensures low power loss, heat resistance, and superior electrical performance.
Quality Assured Standard
Complies with GB/T3667.2-2005 standards and certified with CQC. Operating range: -40°C to +70°C, 21-day thermal class.
Specifications
| Model | CBB61 P2 |
| Rated Capacity | 12uF ±5% |
| Rated Voltage | 450V AC |
| Rated Frequency | 50/60Hz |
| Operating Temperature | -40°C to +70°C |
| Size | 51mm × 35mm × 25mm |
| Wire Length | 95mm / 3.7in |
| Mounting Hole | Φ4.6mm / 0.2in |
| Material | Polypropylene film + plastic shell |
| Standards | GB/T3667.2-2005, CQC certified |
FAQ
Q1 | Can I use this capacitor for a ceiling fan?
Yes, it’s commonly used in ceiling fans, wall fans, and other household appliances with single-phase motors.
Q2 | Is this capacitor polarized?
No, CBB61 capacitors are non-polarized, meaning either wire can be connected to live or neutral terminals.
Q3 | Does it come pre-wired?

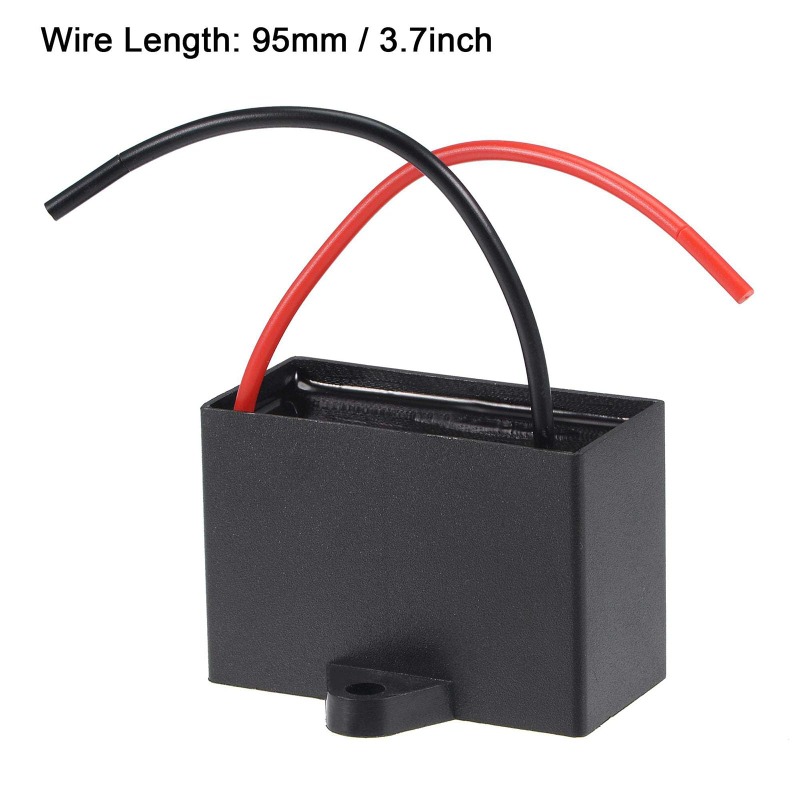

Yes, both red and black wires (approx. 95mm each) are pre-attached for quick and secure installation.
Q4 | Can this be used outdoors?
It is recommended for use in enclosed or indoor appliances. For outdoor applications, additional waterproof housing is advised.
